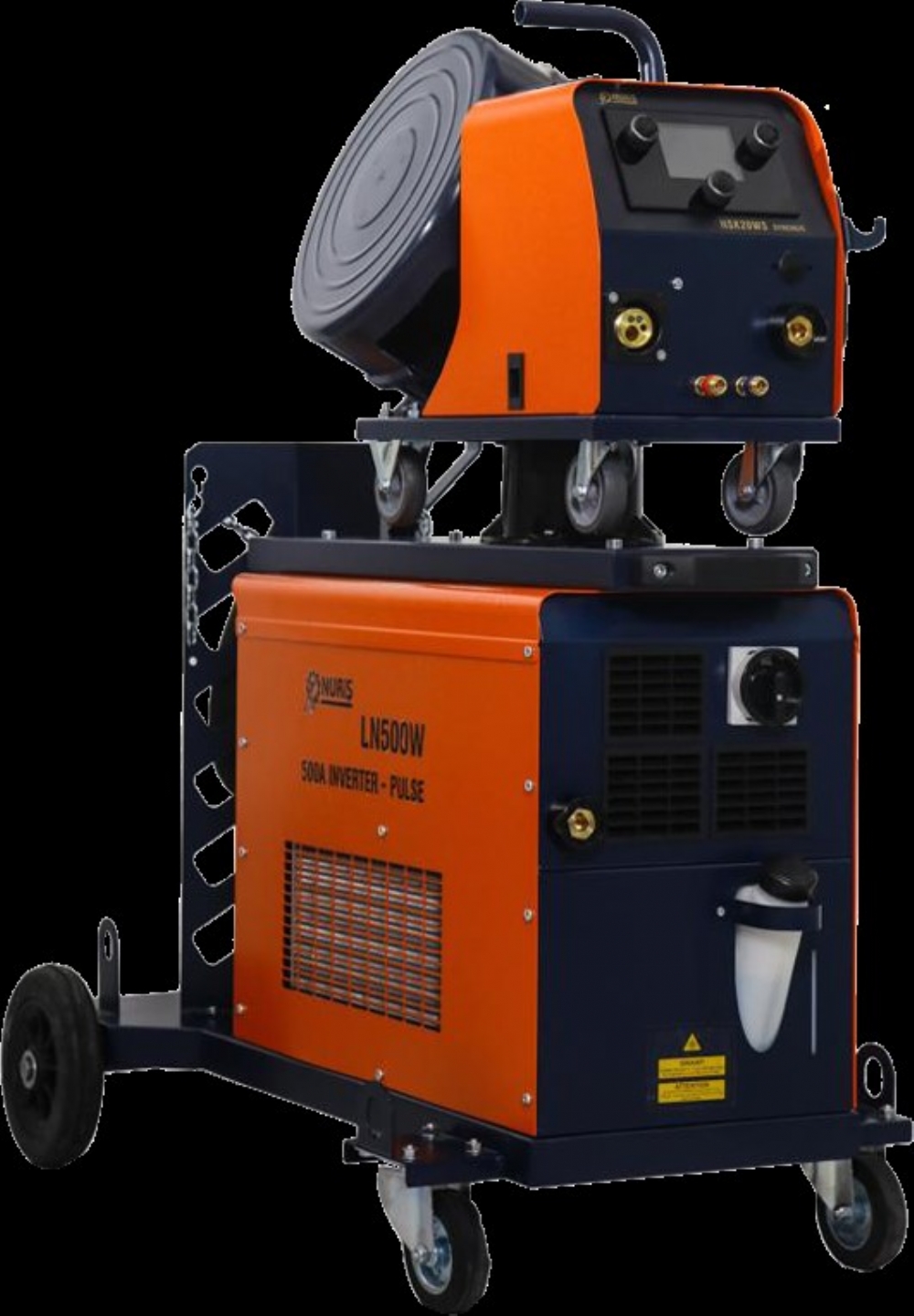

LN 400 / LN 500 is a gas welding machine with inverter technology that allows MIG / MAG (metal inert gas), MMA (covered electrode) and ARGON (TIG) welding to be done with a single machine. With the constant current / constant voltage (CC / CV) contol modes, power unit provides the capability to weld any kind of electrode diameter and make grooving / cutting operations as well as MIG / MAG with its 8mmcarbon electrode.
With the advanced pulse system, it provides spatter-free welding without deforming the workpiece. it is fully equipped for aluminum, stainless and steel materials
The smart fan is activated depending on operating temperature. in this way, average noise level and energy consumption is reduced. The wind tunnel built inside the machine prevents the external dust from reaching the electronic cards.
System Voltage 380V.3 Faz 50/60 Hz
Input Power 23 Kva
Input Current 33A
Current adjustment Range 50-500A Sinerjik
Open circuit Voltage 85V
Type of Current DC IP23AS
Wire draining Speed Field 2-20m/min
Machines dimensions 1100x800x560mm
Weight 95kg
Torch 3mt
Welding Cable with Electrod Holder 2 m
Gas Regulatör 1pcs
